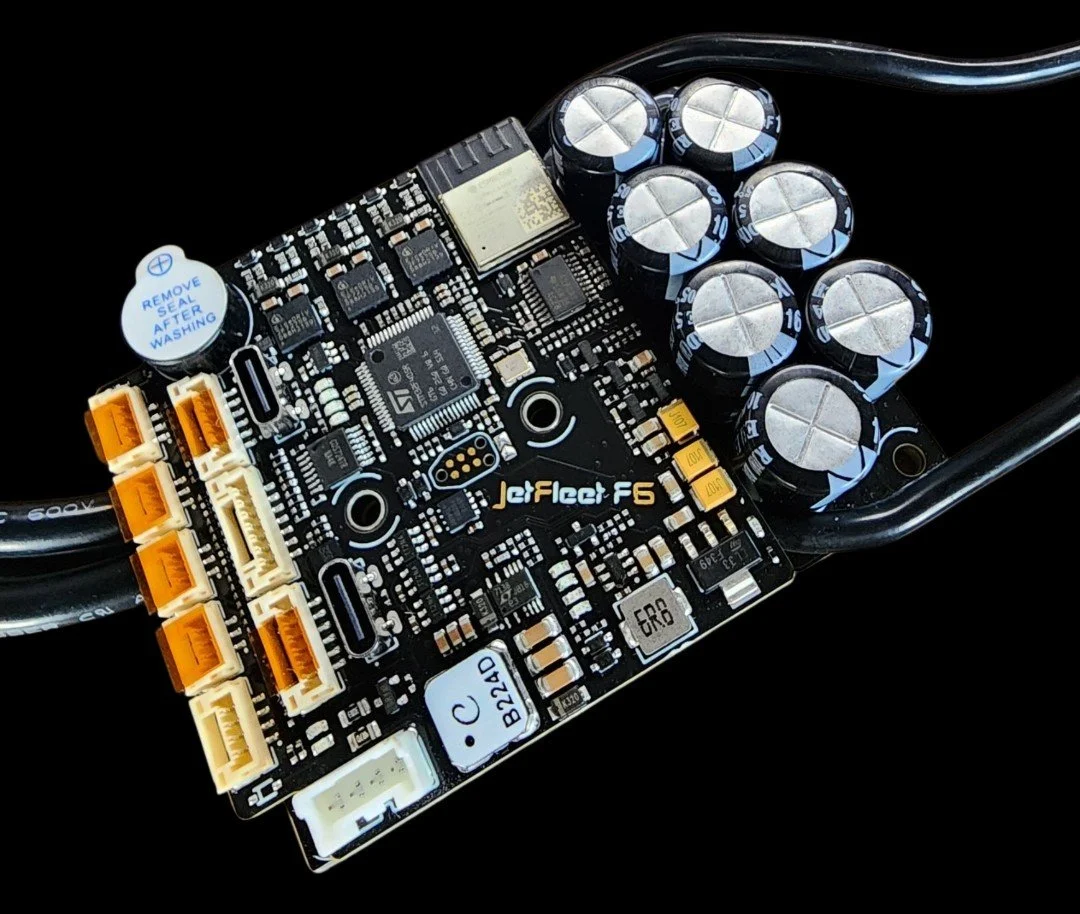

Jetfleet F6 (preorder)

Why Choose the JetFleet F6?

• Effortless Installation 🔧:
  Say goodbye to messy thermal pads and pastes—our innovative design ensures simple mounting that gets you riding faster.

• Unrivaled Efficiency⚡:
  Unlike controllers that pack extra MOSFETs (each adding its own switching loss), the JetFleet F6’s optimized design delivers exceptional efficiency at peak power, and unrivaled performance per watt at cruising speeds, making your battery last longer while being ready at a moment’s notice to deliver heart-stopping acceleration on demand.

• Built for Riders, by Riders 🏍️:
  Crafted by an experienced engineer and avid rider, the JetFleet F6 is designed with real-world riding in mind. It’s built to thrive on the track, on the trail, or anywhere your passion takes you.

• Built for Reliability:
  Enjoy robust, silent performance with a design engineered to minimize noise and interference. This controller is built to thrive in the most demanding conditions.

The New Era of Innovation

Experience the future with our breakthrough updates that take your riding experience to the next level:

• Instant Start Technology🔥:
  Streamline your ride with our innovative roll-to-start feature – no button required (normally open). Just a simple roll and your motor comes to life, making activation effortless and intuitive.

• Dynamic LED Control (with optional DCDC power module)🌈:
  Enjoy three independently controlled LED channels driven by the onboard ESP32. Create mesmerizing light shows with an external DC-DC module of your voltage choice. (https://www.patreon.com/c/SylerTheCreator/home)

• Comprehensive Input Protection🛡️:
  Every GPIO input is safeguarded, ensuring reliable performance and peace of mind in every application.

• Advanced Safety & Flexibility🔒:
  With built-in hardware overcurrent protection, motor and battery voltage cutoffs, and even an emergency kill switch (optional via a momentary button), safety isn’t just a feature—it’s a promise.

• Sleep Like a Vampire: Sip just ~12µA in standby—leave it plugged in for year without a whisper of drain. Plus, the smart momentary switch ensures the controller automatically powers down when not in use, giving you worry‑free battery life.

Technical Excellence at a Glance

Current Handling:

• 32s: ±180A Motor Current Max

• 24s: ±230A Motor Current Max

• 20s: ±260A Motor Current Max

Voltage Rating:

• 32s: 134.4V battery when it is full

• 24s: 100.8V battery when it is full

• 20s: 84V battery when it is full

*Operates seamlessly from 24V up to 140V (32 cell Li-Ion maximum)

*apply automotive standards regen is 0A when battery is full*

Mechanical Features:

• Weight: ~180g with standard wiring

• Dimensions: 80.5 x 60 x 27mm

• Mounting: 6× M3 pattern

• Standard 15cm battery & motor connection cables

Electrical Features:

• Integrated CANBus, IMU LSM6DS3TR-C (832Hz), and a dedicated buzzer

• Three addressable LED channels via ESP32C3

• Robust 3 W/mK, 3mm IMS 1-Layer 2OZ PCB

• Fully protected I/O (resistors/diodes)

• VESC Express compatibility for WiFi, Bluetooth, and LiSP scripting

Electrical Connections:

• Battery/Motor:
  12AWG silicone input cables with XT90 connectors; 10AWG silicone output cables with 5.5mm bullet connectors

• Logic:
  JST GH locking connectors supporting standard interfaces (CANBus, ADC, UART, Hall sensors, 5V/3.3V, SPI, Button, Encoder, Motor Temperature, plus dual USB Type C for VESC-Tool connectivity)

Motor Control Modes:

• FOC, BLDC & DC:
  Compatible with sensorless, Hall sensor, or encoder setups.

• Control Flexibility:
  Choose between current, duty cycle, or PID RPM control—tailor your ride with adjustable limits for current, voltage, RPM, power, regenerative braking, and more via the VESC Tool.

Safety? We’re Obsessed.

• Hardware + software overcurrent shields

• Instant-disable gate drivers if shunts misbehave

• Battery/motor temp cutoffs, voltage guards, and LiSP scripting for your rules

Controller – Rev.2 Updates

• Simplified DC/DC connection

• LED control via refloat pin

• Higher conversion efficiency

• Reduced current sampling noise

Join the Revolution

The JetFleet F6 isn’t just a controller state of the art—it’s a statement. It’s designed for riders, builders, and innovators who demand nothing but the best. Whether you’re perfecting your custom electric vehicle or pushing the limits on the track, the F6 delivers the performance, efficiency, and protection you deserve.

Case, momentary switch, mounting plate and other accessories are sold separately.

Explore, modify, and excel—join our community on Discord and be a part of the evolution inspired by the legendary VESC® project (a registered trademark of Benjamin Vedder).
